Kochana
Status: Under Construction
Owner: Terry Mydlowski
Area: UK-North West
Hull
Passenger launch.
Construction: 12mm cedar strip.
Hull model: Indian Runner designed by Ian Cross at Derby UK in 2000
Built 2016 by Terry Mydlowski at Brighouse
Fit out 2017 by Terry Mydlowski at Greenacres
LOA: 20' 0", LWL: 20' 0", Beam: 5' 1", Draft: 1' 6", Displacement: 4070 lbs.
Boiler
SBA VFT 102 Designed by David Beale,
Built 2004 by T.R.S. Boiler Makers at Derby
Fuel: Coal, Pressure: 200 psi, Grate area: 1.6 sqft, Heating area: 24 sqft,
22" dia X 29" high Welded steel shell barrel. 109 X 1" dia Expanded steel tubes. Welded steel construction,
condensing, engine driven pump, hand pump, Windermere kettle, whistle,
Engine
Twin. 2.5" + 2.5" X 2.5"Built 2000 by Geoffrey Newton at Derby
Designed by: Taylor
sv valve. Stephenson valve gear.
Propeller
Bronze, 3 blades, Right Hand, 14" X 28"
Shaft: 1.25" 316
History
Engine and boiler purchased from Geoff Newton 2011.
Added to the register: 2017.10.27. Last Modified: 2017.10.27.
.png?1713419618)

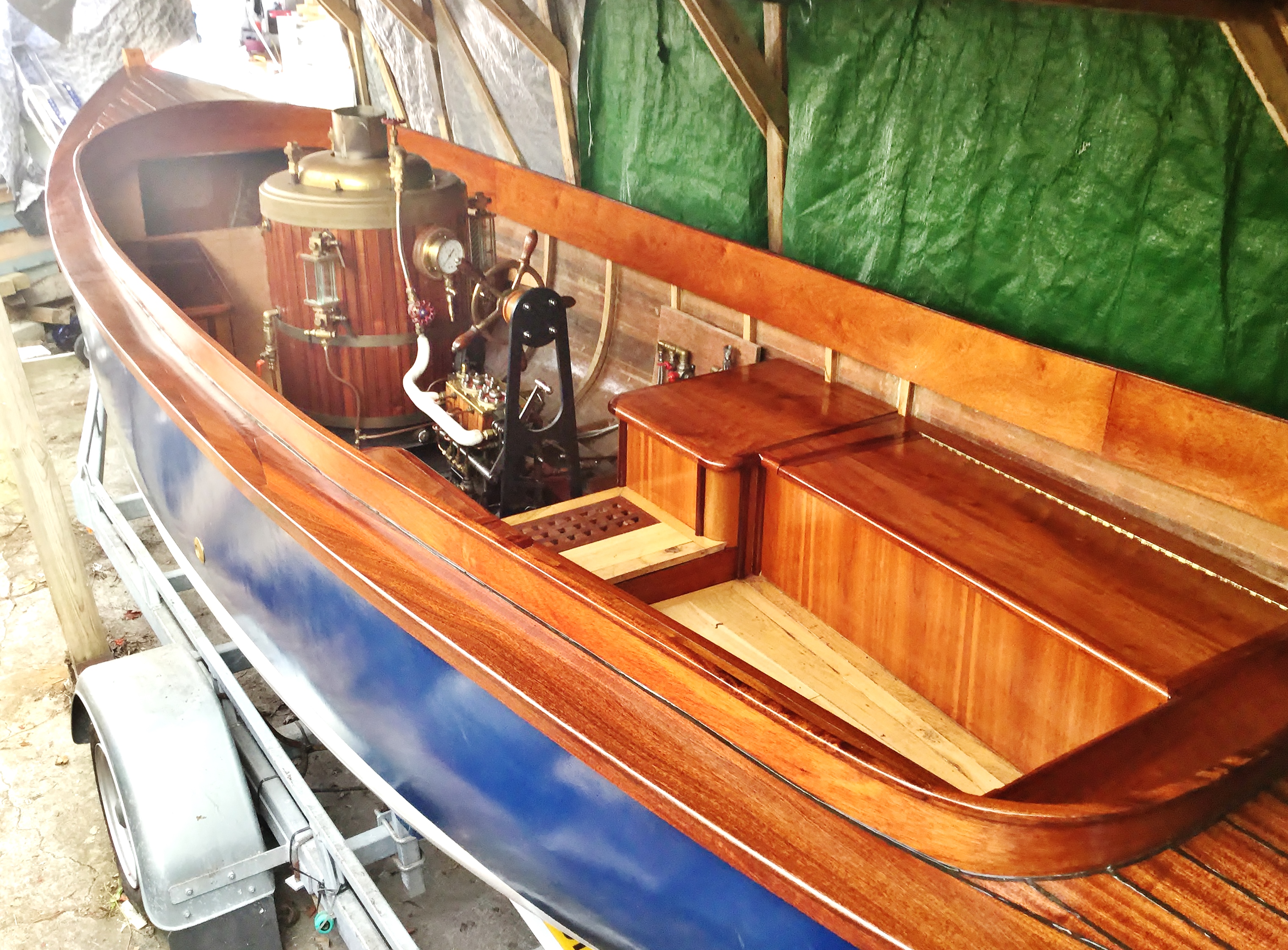

Fitting out at Greenacres.
