Metric units


2018

Status: Under Construction

Owner: Guus

Area: Netherlands


Hull

Yacht. Construction: Wood.
Built 1942 at Nl
LOA: 22' 0", Beam: 6' 0",
Oak wood

Boiler

Flash Fuel: veg. oil,
Welded steel drum and tubes construction,
condensing, engine driven pump, forced draft fan, hand pump, feed water heater,
Flash boiler electronic control multi (bio) 115 KW oil burner

Engine

Triple Expansion. 2.75" + 4.38" + 6.5" X 4"
Built 2020 by Own at Utrecht
Design: 1888 by: Elliott Bay Steam Launch Co.
Power: > 11 HP
Cylinder walls, most moving parts and crankshaft will be coated with a new generation semi ceramic coating.

Propeller

Brass, 3 blades, 21" X 21"
(360°) Azimuth (prop rudder) drive is installed.


History

Hull built in 1942. Steam launch conversion started in 2016. 2020 hybrid boat ready, start of steam technical part, finishing Elliott bay triple and flash boiler.


Added to the register: 2017.12.04.

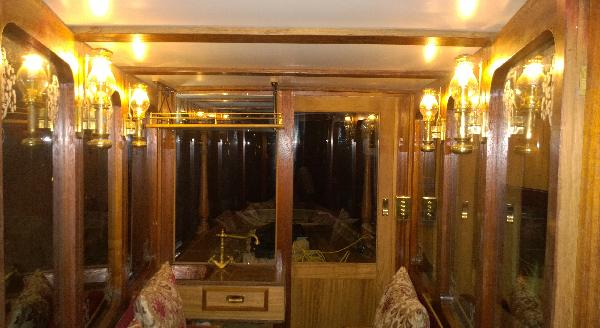

saloon view bow direction. Saloon facilitates 2 sleeping places. Laser engraved glass ornaments display the sun flower heat source (bottom) converted to the triple expansion power plant.

Photos

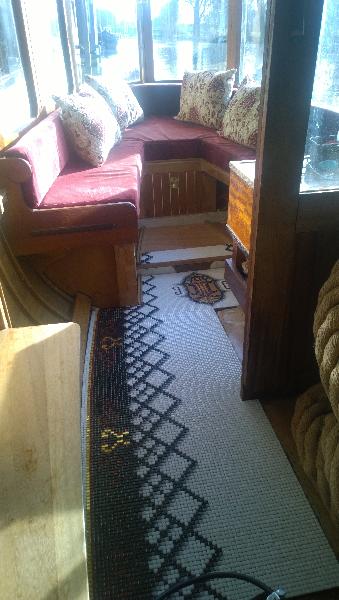

Saloon view stern direction. Next to sliding door: open section hosting steam boiler and machine. Wooden floor will be glass mosaic covered.





Mosaic floor finally covering 19,000 stones


Laser engraved glass ornaments display the sun flower heat source (bottom) converted to the triple expansion power plant (upper part).
